Freitag, 12. Februar 2010

ExtJS Property Grids in APEX...

I found this example for creating an extjs property grid, which made me think how nice it would be, to have this in apex.... so i played around and came up with another report template....
Let's look at the example....

var propsGrid = new Ext.grid.PropertyGrid({
renderTo: 'prop-grid',
width: 300,
autoHeight: true,
source: {
'(name)': 'Properties Grid',
grouping: false,
autoFitColumns: true,
productionQuality: false,
created: new Date(Date.parse('10/15/2006')),
tested: false,
version: 0.01,
borderWidth: 1
viewConfig : {
forceFit: true,
scrollOffset: 2 // the grid will never have scrollbars

As you can see, what we basically have to do is to create the source part.... pretty much usual value pairs....
So, i created a new report template of type "Generic Columns (column template)" ... I called it ExtJS_PropertyGrid_Report...
Before Rows

<div id="prop-grid#REGION_STATIC_ID#"></div>
<script type="text/javascript">
Ext.override(Ext.grid.PropertyGrid, {
removeProperty: function(property){
delete this.source[property];
var r =;
// remove property;

function initRegion#REGION_STATIC_ID#() {
var propsGrid = new Ext.grid.PropertyGrid({
applyTo: 'prop-grid#REGION_STATIC_ID#',
id: 'myPropertyGrid#REGION_STATIC_ID#',
width: 300,
autoHeight: true,
source: {

I copied more or less the example from above, added #REGION_STATIC_ID# to make the names and ids unique.... Then i just add a value pair for every column in the report.... (Reports, that use this template should only have one row!!!)

Column Template 1


I have a comma to much, so i add a dummy entry, which i instantly remove when the grid is created.....
After Rows

viewConfig : {
forceFit: true,
scrollOffset: 2 // the grid will never have scrollbars
propsGrid.removeProperty('MYDUMMY123'); // remove the dummy entry


I put the whole magic inside a function, so i can call it again, wenn i refresh the report via $a_report()....
Now we can create a report region with any select, that generates a one row result set.... the column names have to be unique....
For example:

select '01.06.1980' as "Birthday"
, 'Anja' as "Firstname"
, 'Hildebrandt' as "Name"
, 'Developer' as "Profession"
from dual

Select your new created template...

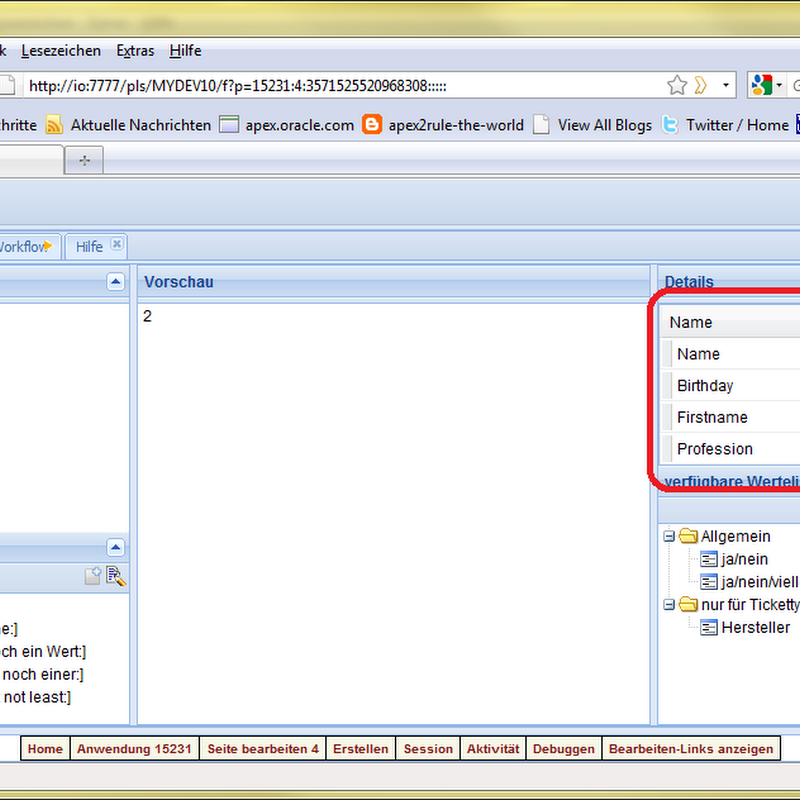

The result shoul look something like this....

That's it....
Have fun...
